1. Wear-resistant, water-resistant, and anti-aging, the normal service life can reach more than 30 years.
2. The product meets national environmental protection requirements, does not contain plasticizers, is non-toxic and harmless, and can be recycled.
3. The product is widely used in water supply and drainage pipes, agricultural irrigation pipes, environmental engineering pipes, air conditioning pipes and other fields.

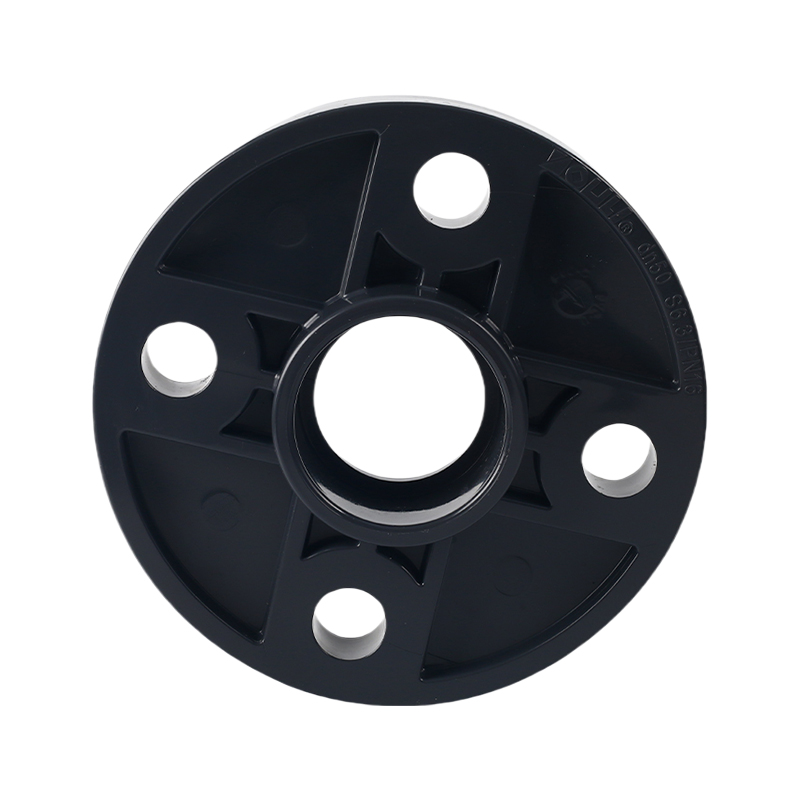

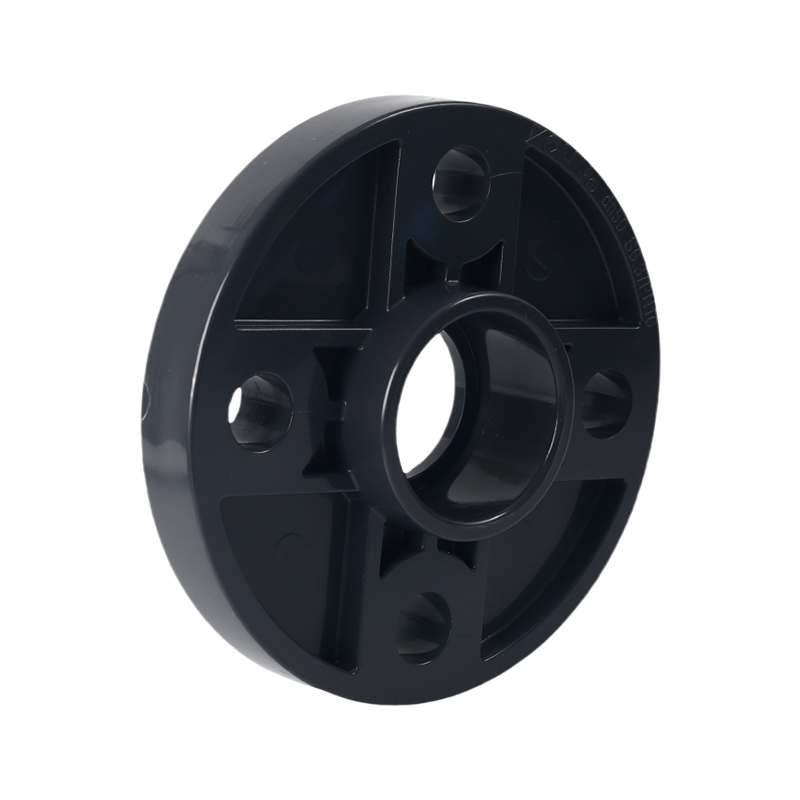

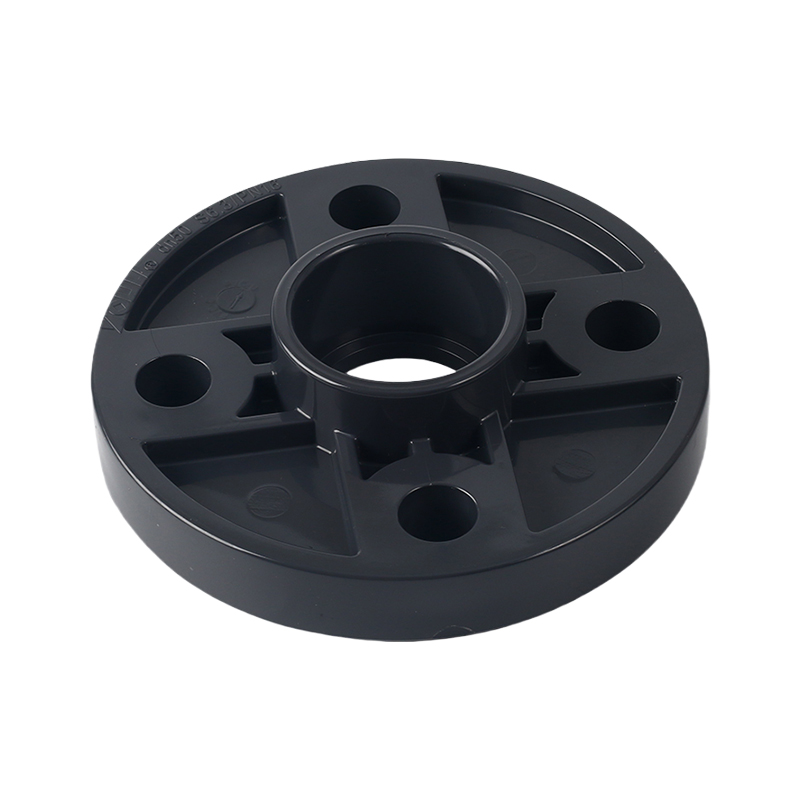

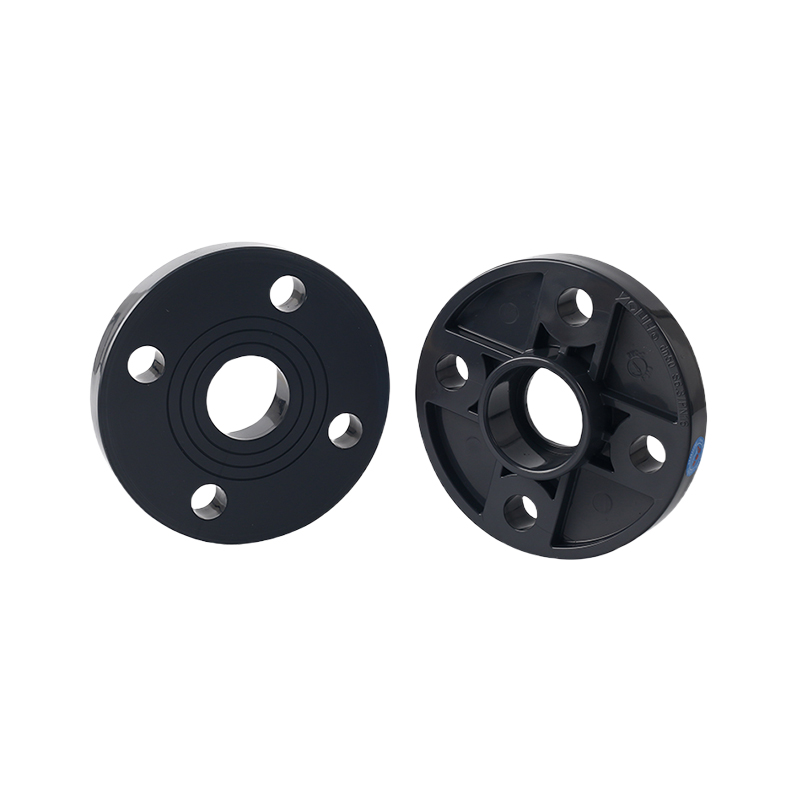

PVC-U Flange

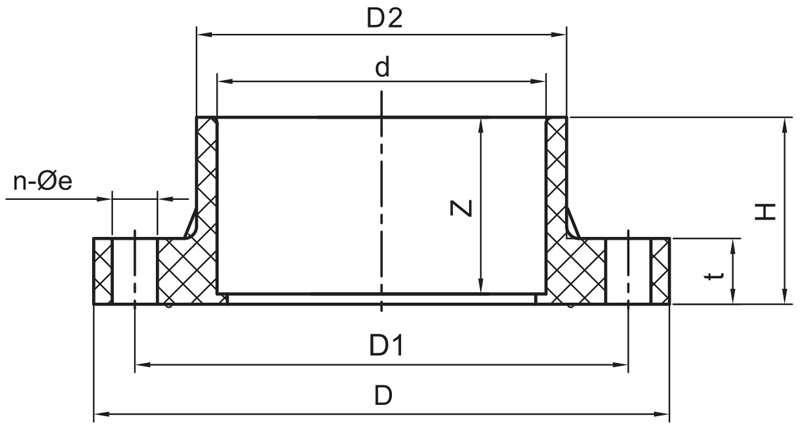

Size		Dimensions（mm）								Code
DN	dn	D	d	Z	D1	D2	H	t	n-Φe	PVC-C	PVC-U
15	20	95	20	16	65	27	20	13	4-14	YL 36 25 420	YL 05 25 420
20	25	105	25	19	75	33	23	17	4-14	YL 36 25 425	YL 05 25 425
25	32	115	32	22	85	41	27	18	4-14	YL 36 25 432	YL 05 25 432
32	40	140	40	26	100	50	30	20	4-18	YL 36 25 440	YL 05 25 440
40	50	150	50	31	110	61	36	20	4-18	YL 36 25 450	YL 05 25 450
50	63	165	63	38	125	75	42	24	4-18	YL 36 25 463	YL 05 25 463
65	75	185	75	44	145	88	51	24	4-18	YL 36 25 475	YL 05 25 475
80	90	200	90	51		106.5	58	26	8-18	YL 36 25 490	YL 05 25 490
100	110	220	110	61	180	128	66	26	8-18	YL 36 25 510	YL 05 25 510
125	140	250	140	76	210	161	86	26	8-18	YL 36 25 540	YL 05 25 540
150	160	285	160	86	240	184	95	29	8-22	YL 36 25 560	YL 05 25 560
200	225	340	225	119	295	247	128	30	8-22	YL 36 25 625	YL 05 25 625
250	280	395	280	146	350	310	157	30	12-22	YL 36 25 680	YL 05 25 680
300	315	445	315	164	400	344	172.5	31	12-22	YL 36 25 715	YL 05 25 715
*350	355	532	355	185	460	390	200	43	16-22	Z 36 25 073	Z 05 25 073
*400	400	568	400	206.5	515	432	232	45	16-26	Z 36 25 037	Z 05 25 037
*450	450	615	450	231	565	490	251	45	20-26	Z 36 25 038	Z 05 25 038
*500	500	670	500	256	620	539	280	50	20-26	Z 36 25 039	Z 05 25 039
*600	600	780	600	290	725	640	320	47	20-30	Z 36 25 040	Z 05 25 040
*600	630	780	630	330	725	676	460	47	20-30	Z 36 25 001	Z 05 25 001
*900	900	1115	900	450	1050	940	580	40	28-33	Z 36 25 005	Z 05 25 005
*1000	1000	1230	1000	480	1160	1048	640	40	28-36	Z 36 25 006	Z 05 25 006
*1100	1100	1340	1100	480	1270	1148	690	40	28-36	Z 36 25 007	Z 05 25 007
*1200	1200	1455	1200	480	1380	1248	740	40	32-39	Z 36 25 008	Z 05 25 008
